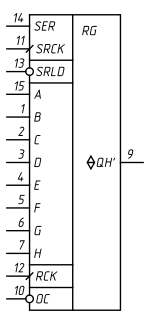

74LS589
8-bit shift register with input latch and 3-state output
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS589N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
