Name:ATmega809
Short description:8-bit AVR Microcontroller

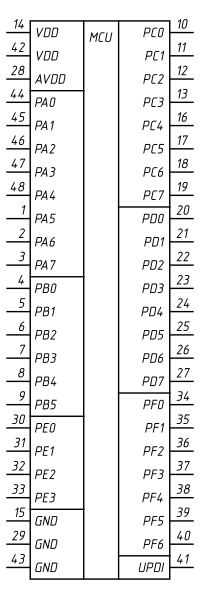

Symbol:
Pinout: Default Style: GOST

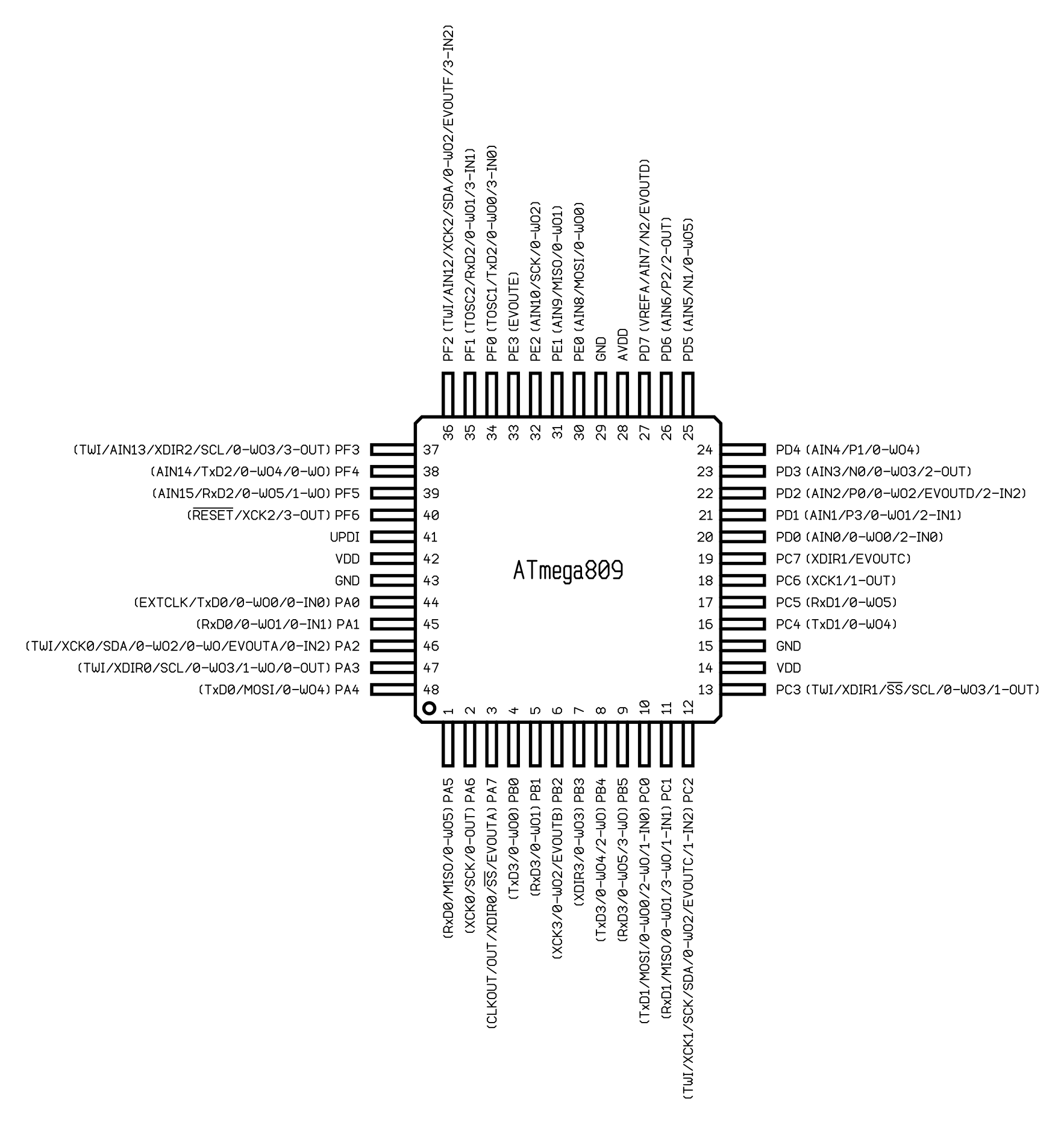

TQFP-48 (JEDEC MS-026-ABC) [Pinout]

VendorPart number / Specifications
MicrochipATmega809-AF
MicrochipATmega809-AFR
MicrochipATmega809-AU
MicrochipATmega809-AUR
