74LS138
3-line to 8-line decoder/demultiplexer

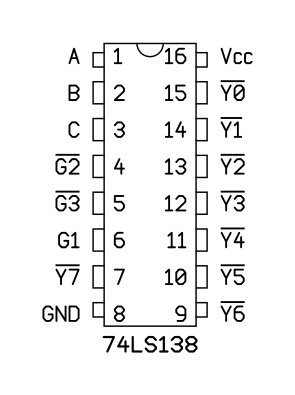

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)
Pinout
Manufacturer:
Texas Instruments
Part number:
SN74LS138N
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
