Category:
Name:ATmega3209
Short description:8-bit AVR microcontroller

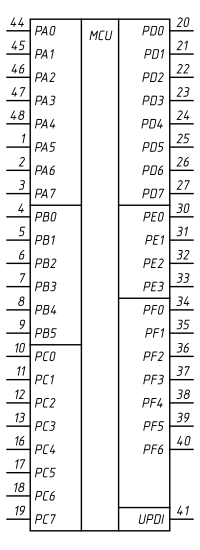

Symbol:
Pinout: Default Style: GOST

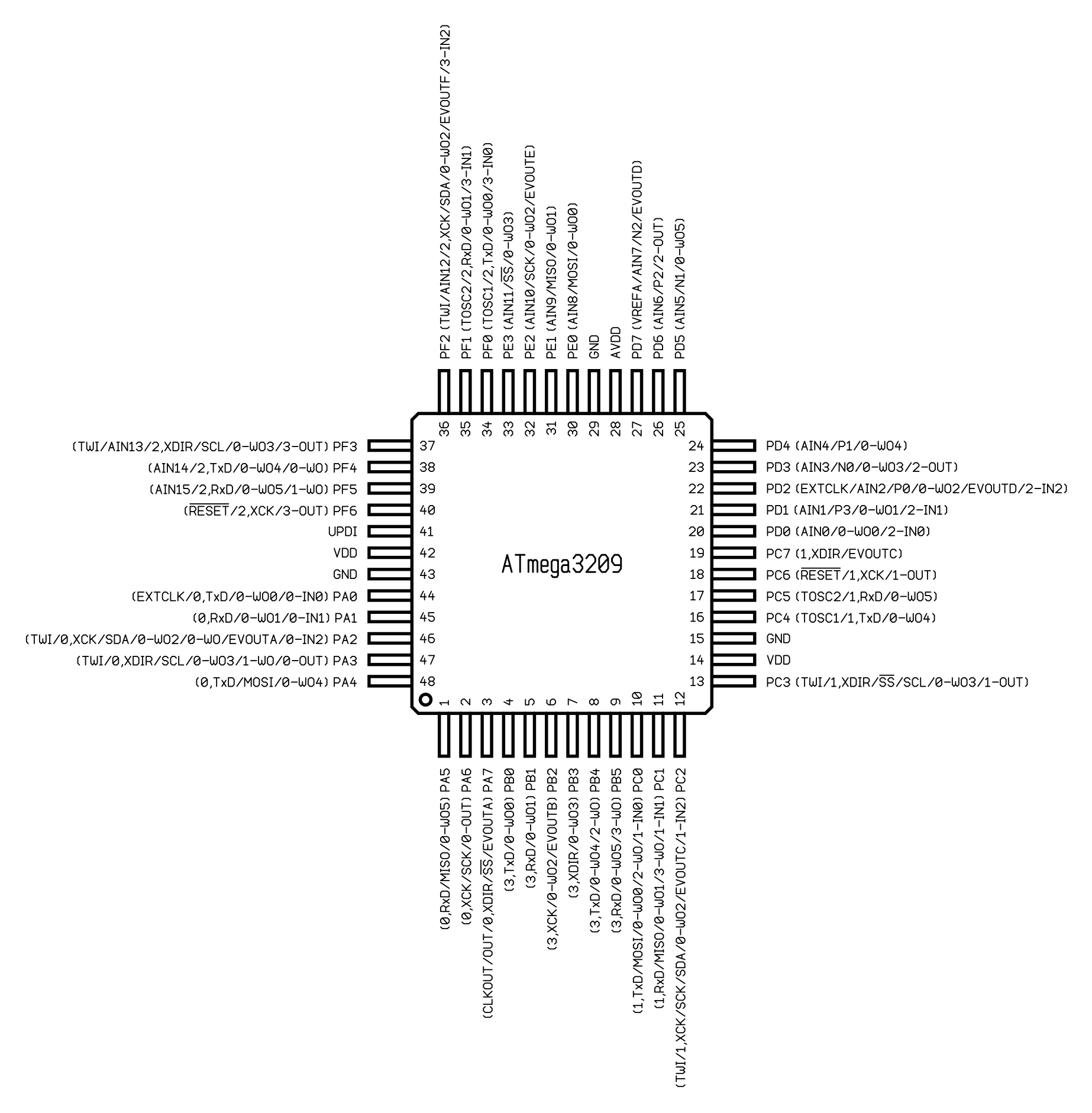

TQFP-48 (JEDEC MS-026-ABC) [Pinout]

VendorPart number / Specifications
MicrochipATmega3209-AF
MicrochipATmega3209-AFR
MicrochipATmega3209-AU
MicrochipATmega3209-AUR
