8216
4-bit parallel bi-directional bus driver
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-16
(JEDEC MS-001, Variation BB)

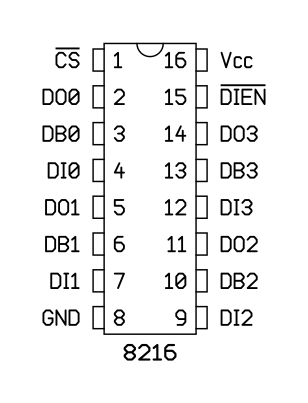

Pinout
Manufacturer:
Intel
Part number:
P8216
PDIP-16 (JEDEC MS-001, Variation BB)
package diagram
PDIP-16
(JEDEC MS-001, Variation AB)

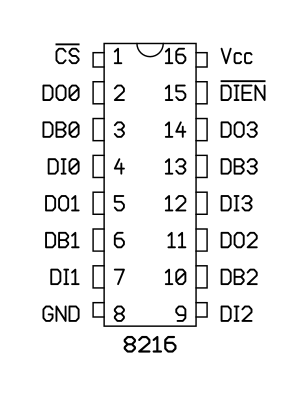

Pinout
Manufacturer:
Intel
Part number:
P8216
PDIP-16 (JEDEC MS-001, Variation AB)
package diagram
