Priority Interrupt Control Unit
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-011, Variation AA)

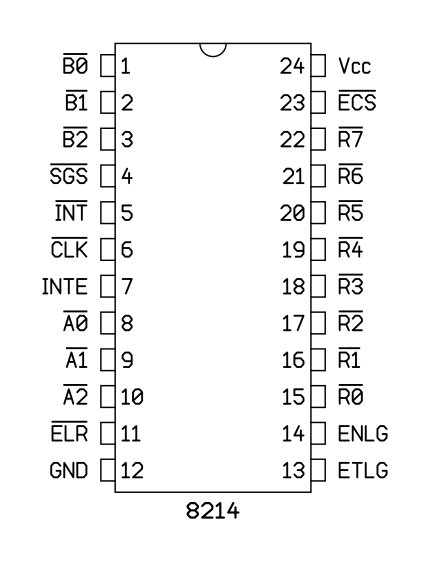

Pinout
Manufacturer:
Intel
Part number:
P8214
Manufacturer:
NEC
Part number:
μPB8214
PDIP-24W (JEDEC MS-011, Variation AA)
package diagram
