8259
Programmable interrupt controller

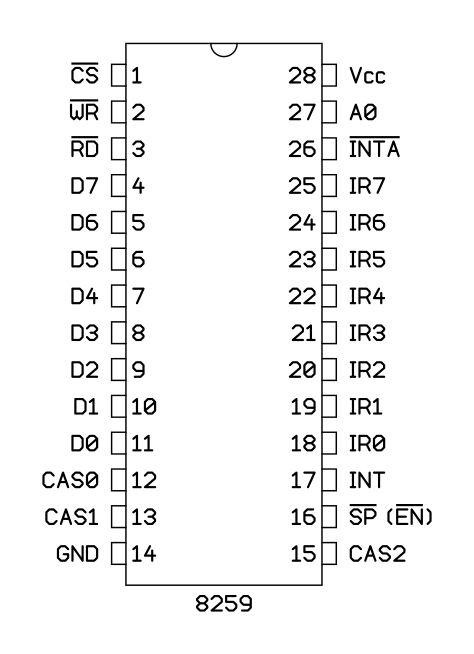

Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-28
(JEDEC MS-011, Variation AB)

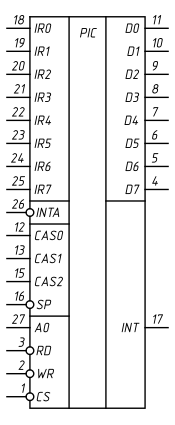

Pinout
Manufacturer:
Intel
Part number:
P8259A
Manufacturer:
Intel
Part number:
P8259A-2
PDIP-28W (JEDEC MS-011, Variation AB)
package diagram
