8 bit microprocessor
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

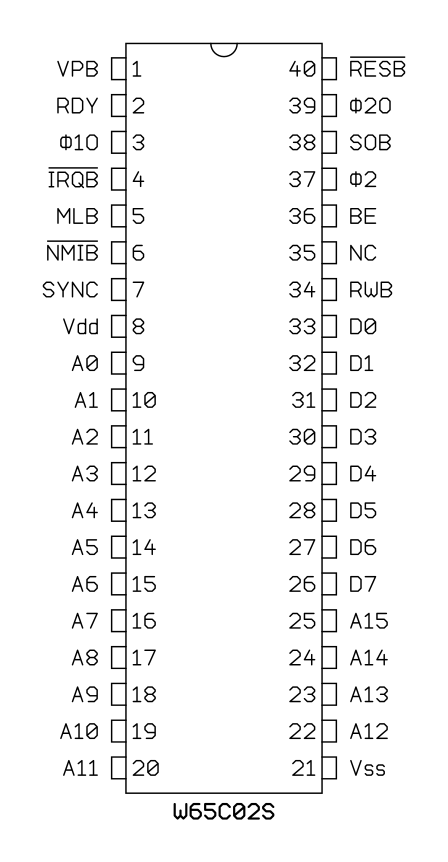

Pinout
Manufacturer:
Western Design Center
Part number:
W65C02S6TPG-14
PDIP-40 (JEDEC MS-011, Variation AC)

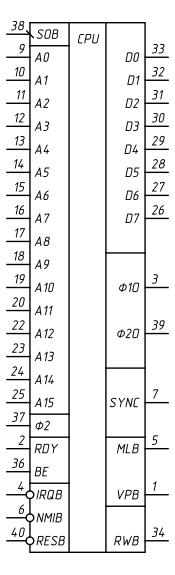

package diagram
