6569
PAL-B Video Interface Chip (VIC II)
Pinout:

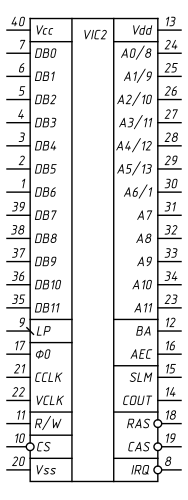

Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

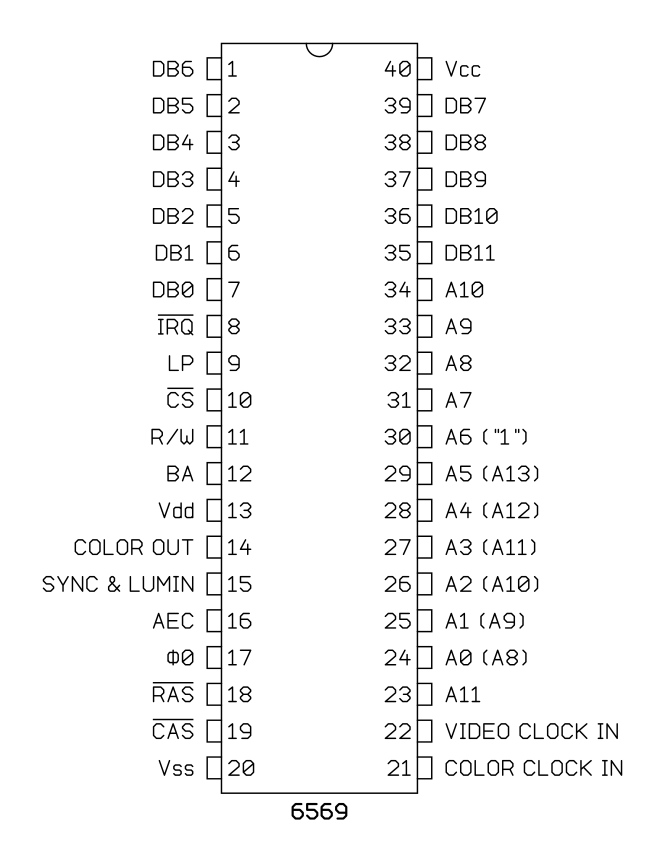

Pinout
Manufacturer:
MOS Technology
Part number:
MCS6569R3
Manufacturer:
MOS Technology
Part number:
MCS6569R4
Manufacturer:
MOS Technology
Part number:
MCS6569R5
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
