6563-001
PAL Video Interface Chip with 2MHz clock option

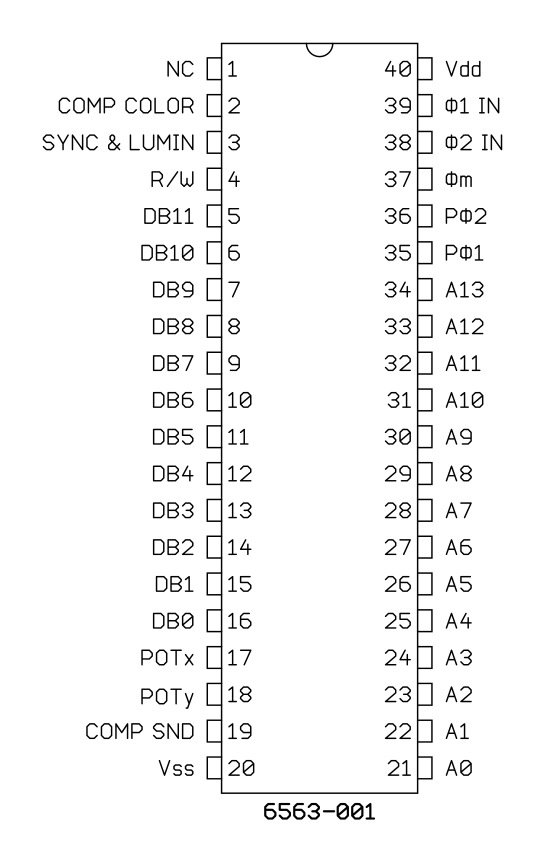

Pinout:
Default

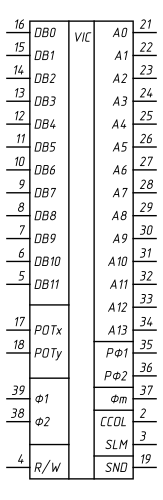

Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)
Pinout
Manufacturer:
MOS Technology
Part number:
MCS6563-001
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
