6562-201
NTSC Video Interface Chip with horizontal and vertical counters reset option
Pinout:
Default
Style:

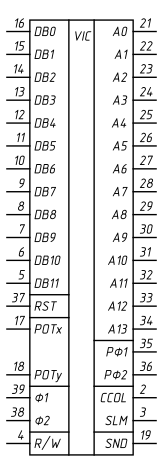

GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

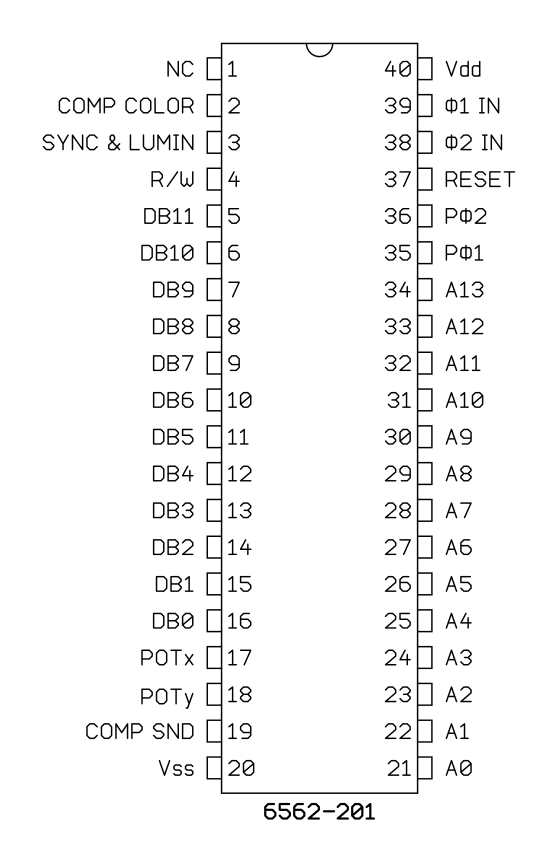

Pinout
Manufacturer:
MOS Technology
Part number:
MCS6562-201
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
