6562-001
NTSC Video Interface Chip with 2MHz clock option
Pinout:

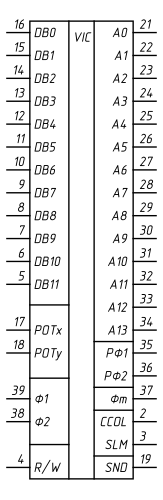

Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

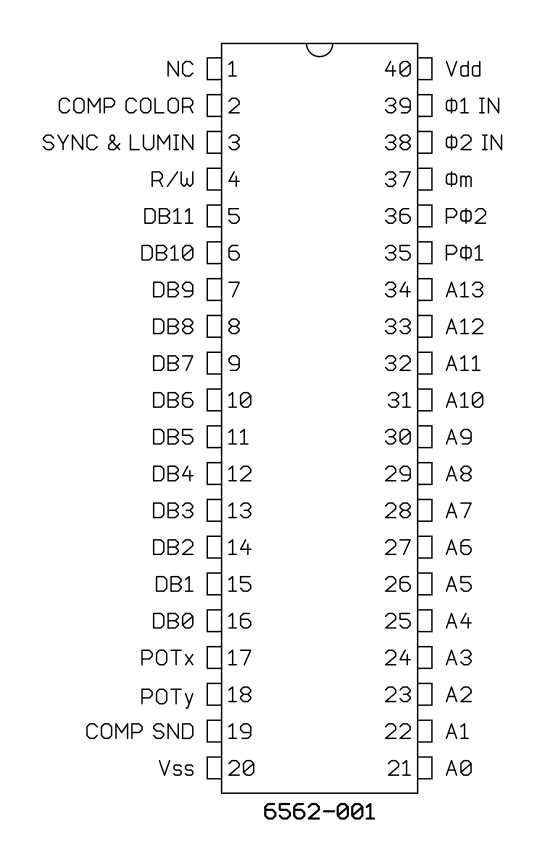

Pinout
Manufacturer:
MOS Technology
Part number:
MCS6562-001
PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
