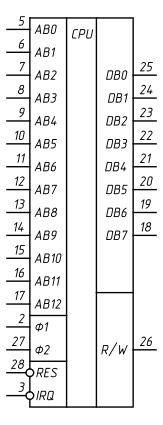

8 bit microprocessor
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-28
(JEDEC MS-011, Variation AB)
Pinout
Manufacturer:
MOS Technology
Part number:
MCS6514
Manufacturer:
MOS Technology
Part number:
MCS6514A
PDIP-28W (JEDEC MS-011, Variation AB)

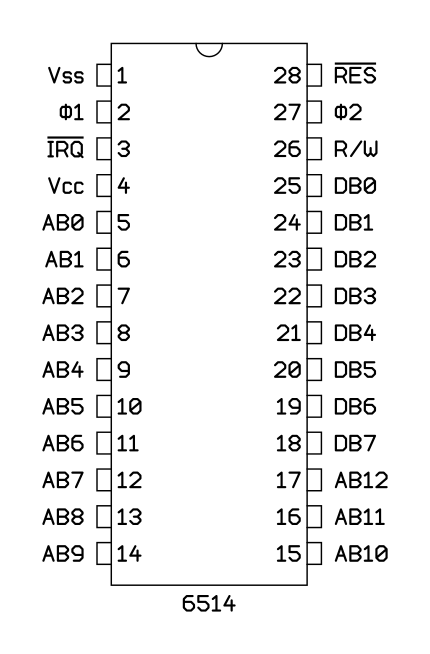

package diagram
