8 bit microprocessor
Pinout:
Default
Style:
GOST
Variant:
Variant 1
PDIP-40
(JEDEC MS-011, Variation AC)

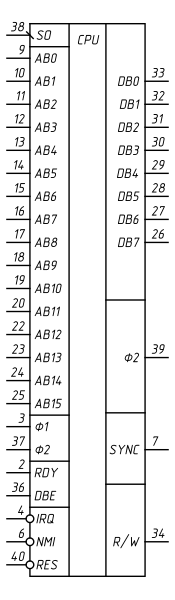

Pinout
Manufacturer:
MOS Technology
Part number:
MCS6512
Manufacturer:
MOS Technology
Part number:
MCS6512A

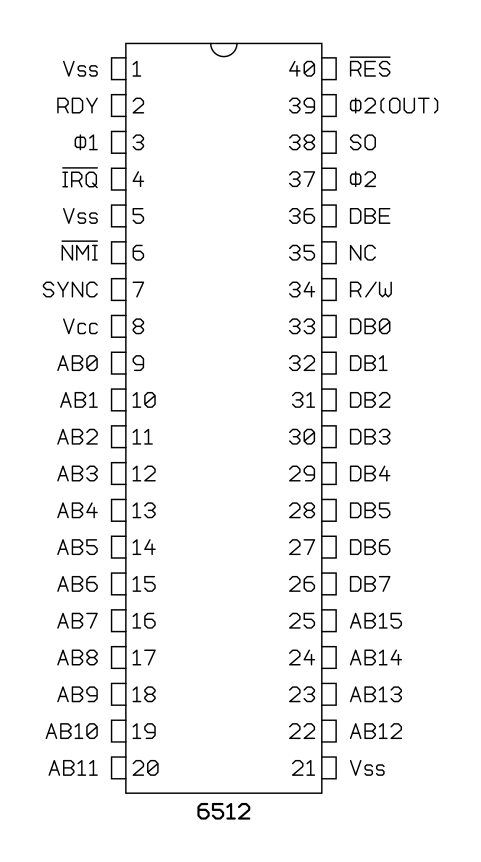

PDIP-40 (JEDEC MS-011, Variation AC)
package diagram
