6506
8 bit microprocessor
Pinout:
Default

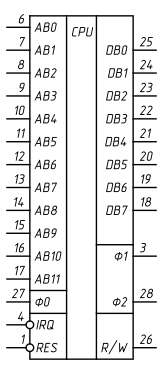

Style:
GOST
Variant:
Variant 1
PDIP-28
(JEDEC MS-011, Variation AB)

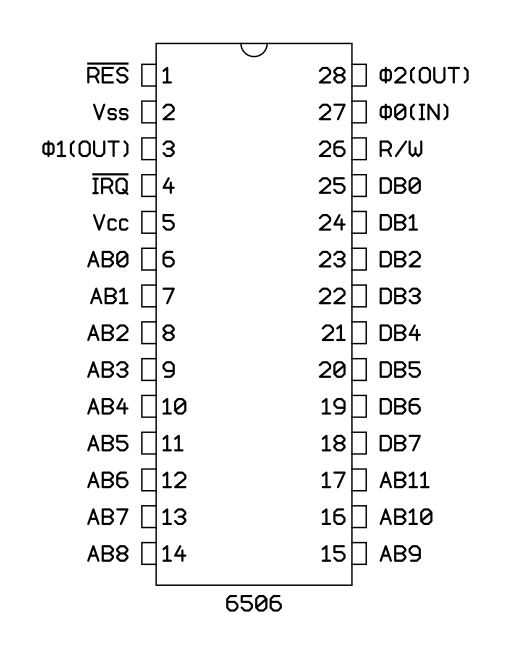

Pinout
Manufacturer:
MOS Technology
Part number:
MCS6506
Manufacturer:
MOS Technology
Part number:
MCS6506A
PDIP-28W (JEDEC MS-011, Variation AB)
package diagram
