ENC424J600
Stand-Alone 10/100 Ethernet Controller with SPI or Parallel Interface
Pinout:
TQFP-44

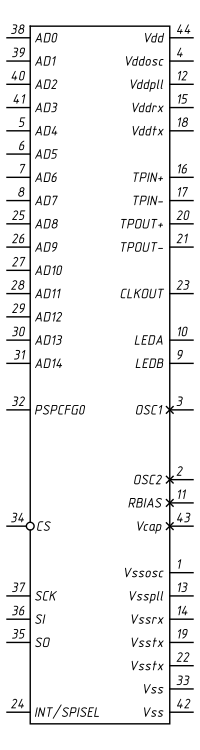

Style:
GOST
Variant:
Variant 1
TQFP-44
(JEDEC MS-026-ACB)

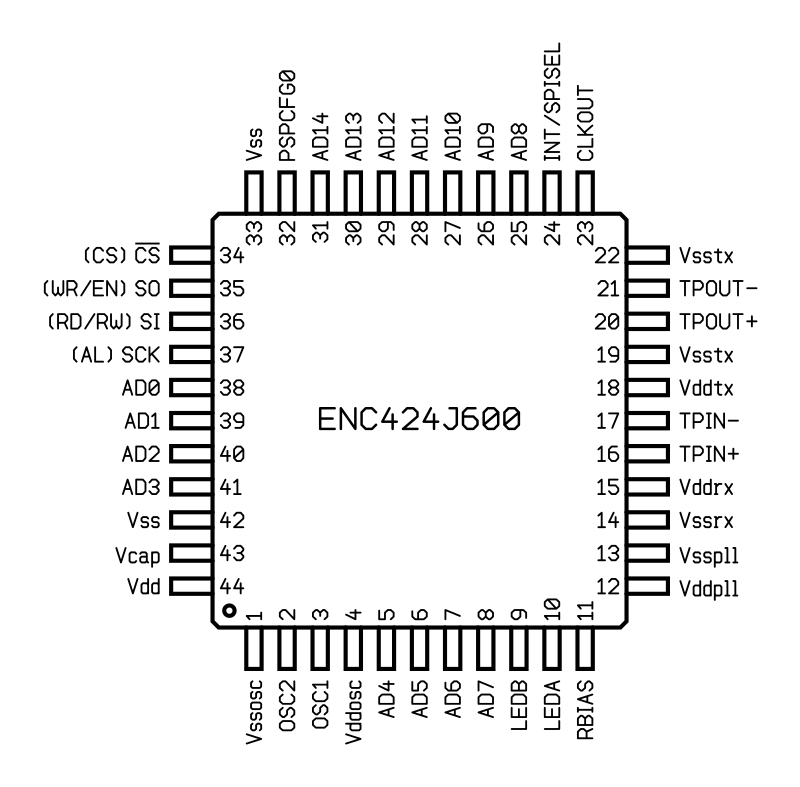

Pinout
Manufacturer:
Microchip
Part number:
ENC424J600-I/PT
Manufacturer:
Microchip
Part number:
ENC424J600T-I/PT

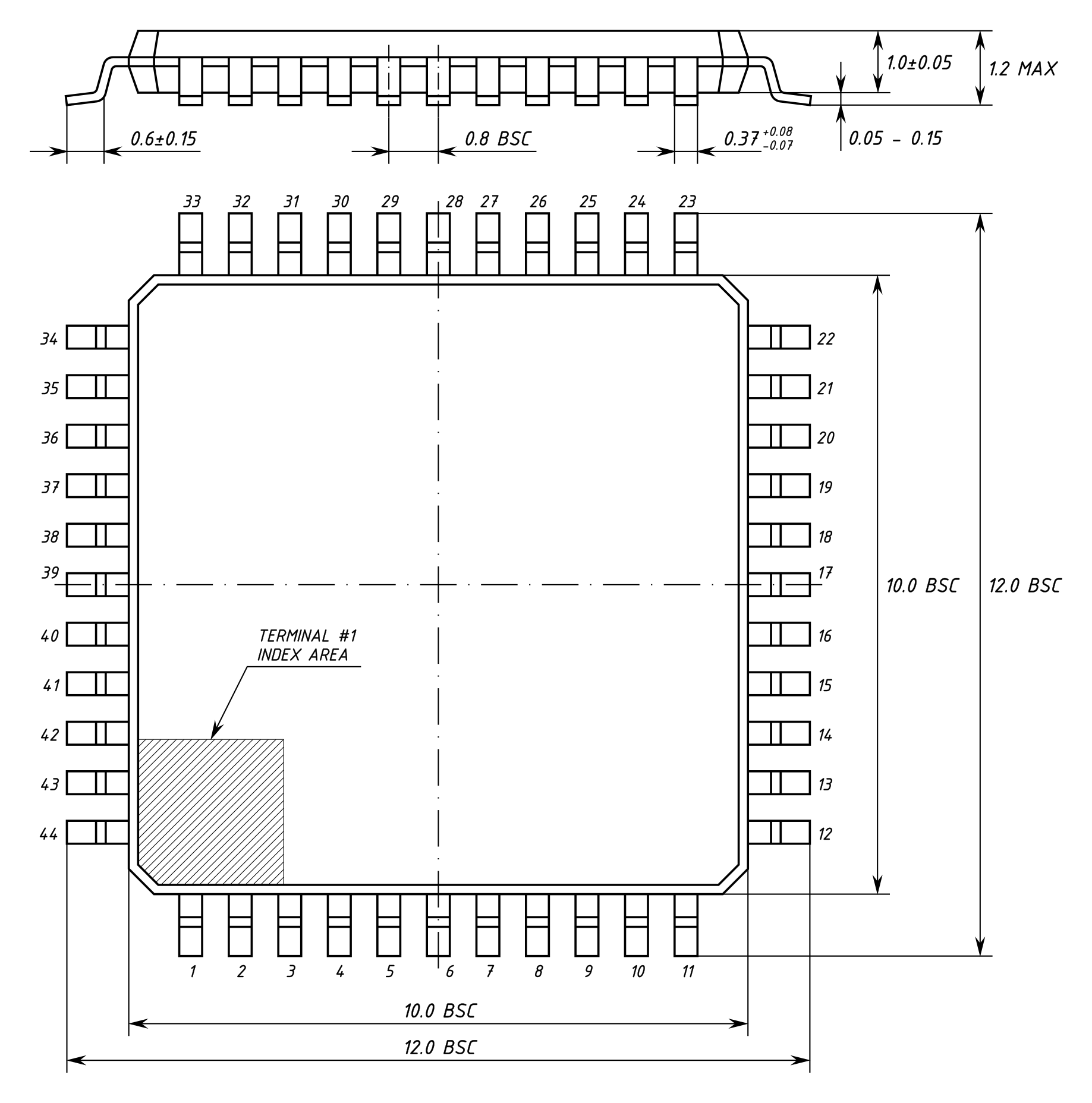

TQFP-44 (JEDEC MS-026-ACB)
package diagram
