ATF22V10C
High-performance CMOS EEPLD
Pinout:
Default
Style:

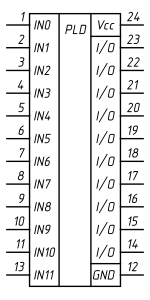

GOST
Variant:
Variant 1
PDIP-24
(JEDEC MS-001, Variation AF)

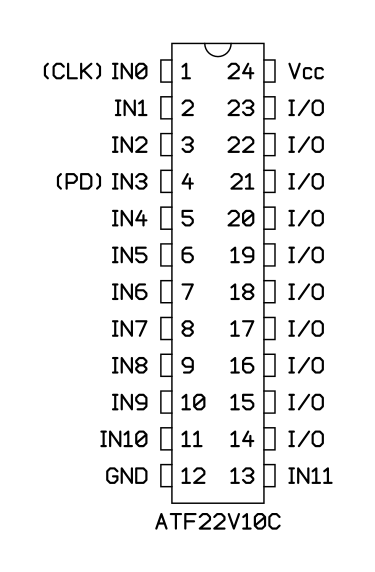

Pinout
Manufacturer:
Atmel
Part number:
ATF22V10C-10PU
Manufacturer:
Atmel
Part number:
ATF22V10C-7PX
PDIP-24N (JEDEC MS-001, Variation AF)
package diagram
