Category:
Name:AS7C256C
Short description:32K X 8 Bit high speed CMOS SRAM

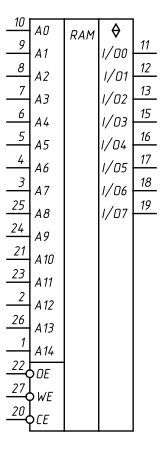

Symbol:

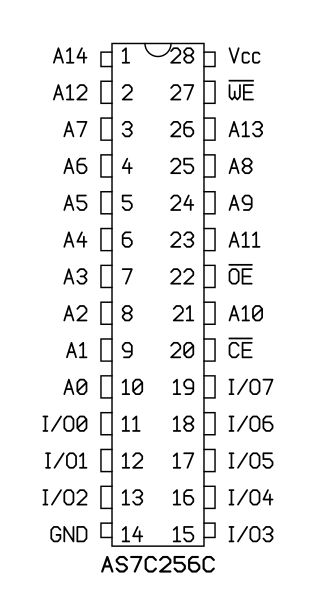

Pinout: Default Style: GOST

PDIP-28N (JEDEC MS-001, Variation BF) [Pinout]

VendorPart number / Specifications
Alliance MemoryAS7C256C-15PCN
