Category:
Name:AS7C164A
Short description:8K X 8 Bit high speed CMOS SRAM

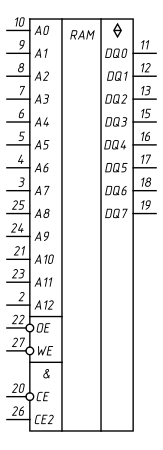

Symbol:

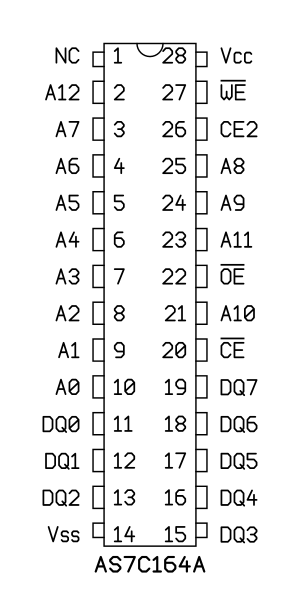

Pinout: Default Style: GOST

PDIP-28N (JEDEC MS-001, Variation BF) [Pinout]

VendorPart number / Specifications
Alliance MemoryAS7C164A-15PCN
Alliance MemoryAS7C164A-15PIN
