Category:
Name:AT28C64B
Short description:5V 64Kbit (8Kbit x 8) Parallel EEPROM

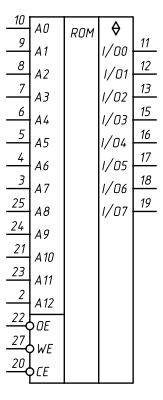

Symbol:
Pinout: Default Style: GOST

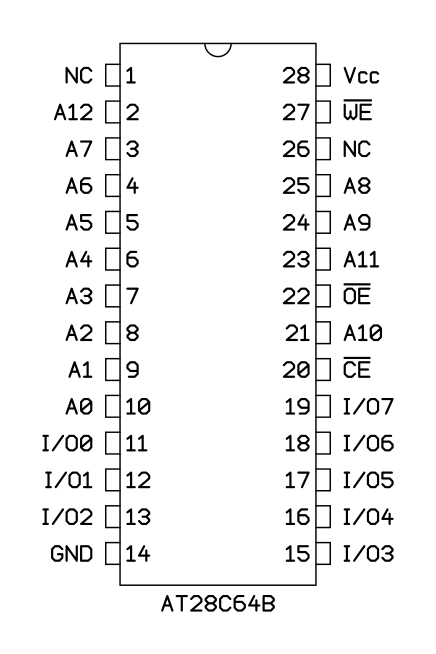

PDIP-28W (JEDEC MS-011, Variation AB) [Pinout]

VendorPart number / Specifications
MicrochipAT28C64B‑15PU
